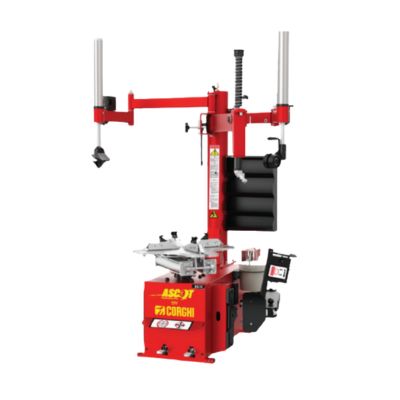

Ascot by Corghi 443-08630 Swing Arm Tire Changer

Ascot by Corghi 443-08630 Swing Arm Tire Changer

Introducing the Swing Arm Tire Changer from Ascot by Corghi.


Product Features:
-The manually controlled pneumatic bead breaker is convenient and comfortable to operate
-Equipped with stepless speed change system, constant torque output, power up to 1200N.
-Large pedal operation space to avoid risks caused by misoperation
-Large tool box, easy to access items
-12"-30" fast adjustable turntable, providing wide applicability and high efficiency practicability
-The standard double upper auxiliary arms make it easier to disassemble and assemble tires

Outside clamping range 12"-28"
Inside clamping range 14"-30"
Rim Width 15"(380mm)
Max Wheel Diameter 49"(1250mm)
Working Pressure 8-10bar
Rated torque 1200N.m
Power supply 200V-240V,
50/60Hz, 1P
Motor power 0.85KW
Rotation per minute 0-13rpm
