Coats MAXX80 Electric Table Top Tire Changer (220V)

Coats MAXX80 Electric Table Top Tire Changer (220V)

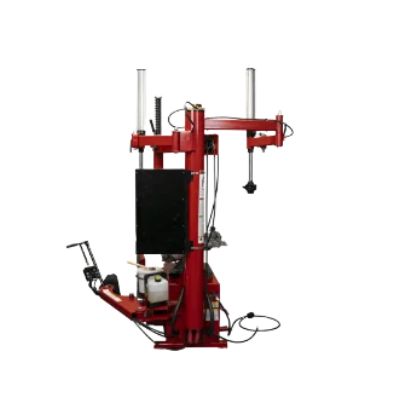

The Coats MAXX80 (220V) is an electric table top rim clamp tire changer with a 220V, 2 HP motor. It has a 6–30" external clamping capacity and handles tires up to 50" in diameter and 16" wide. It comes with two bead helper tools, the Robo-Arm and the RoboRoller. Its bead loosener can be run by hand or by foot.

Key Features:

• 220V, 2 HP electric motor: Requires 220V, 10 amp, single-phase power with a NEMA L6-20 connection.
• Table top rim clamp: Four air-cylinder-operated rim clamps with a 6–30" external capacity (24" total range).
• Robo-Arm: Presses directly on the tire bead to push it into the drop center during mounting, which helps with low profile and run-flat tires.

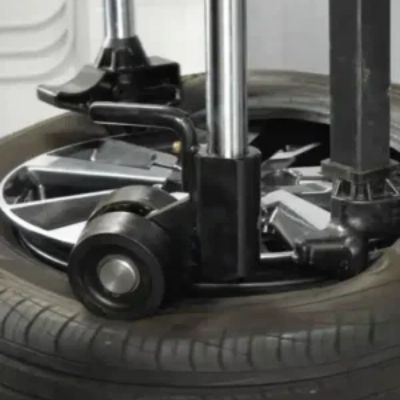

• RoboRoller: A bead depressor that holds the bead in the drop center so the tire doesn't roll back over the mount tool.
• Dual mode bead loosener: The shovel can be controlled by hand or by foot and works on tires up to 22" wide.
• Double single-point secondary inflation.

Specifications:

Frequently Asked Questions:

What power does the Coats MAXX80 220V require?
It requires 220V, 10 amp, single-phase power with a NEMA L6-20 connection. It uses a 2 HP electric motor.

What is the clamping capacity of the Coats MAXX80?
The MAXX80 has a 6–30" external capacity (24" total range), using four air-cylinder-operated rim clamps.

What is the largest tire the MAXX80 can handle?
It handles tires up to 50" in diameter and 16" wide.

Does the Coats MAXX80 come with bead helper tools?
Yes. The MAXX80 includes both the Robo-Arm and the RoboRoller.

How much floor space does the Coats MAXX80 need?
The footprint is 74" wide x 86" high x 44" deep.

Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories
