Coats HD 6450 3D Heavy Duty Wheel Balancer Kit with 575 Wheel Lift

Coats HD 6450 3D Heavy Duty Wheel Balancer Kit

The Coats 6450 3D is a UL-certified direct drive wheel balancer for heavy duty and passenger vehicle wheels. Its Dual Calibration Software (DCS™) runs two independent calibrations, one for heavy duty and one for passenger vehicles, so it works like two machines in one. Every kit includes the Coats 575 Wheel Lift, which handles wheel assemblies up to 500 lbs. Every kit also includes a Stud Piloted Budd Adapter and a Hub Centered Cone Kit. The 6450 handles rim diameters from 8" to 30", rim widths up to 20", and tires up to 52" in diameter.

Key Features:

• 575 Wheel Lift included: Handles heavy wheel assemblies up to 500 lbs. It bolts directly onto the balancer.
• Dual Calibration Software (DCS™): Two independent calibrations for heavy duty and passenger vehicles adjust balancing parameters for each job.

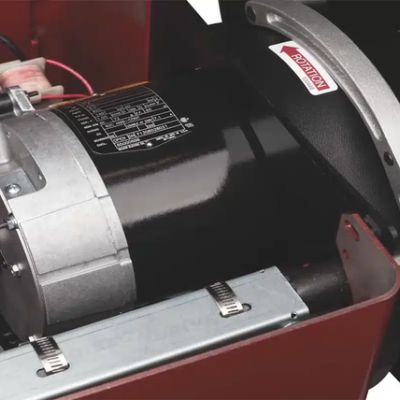

• Direct drive: The motor and spindle are integrated into a single, factory pre-balanced assembly with no belts or pulleys.

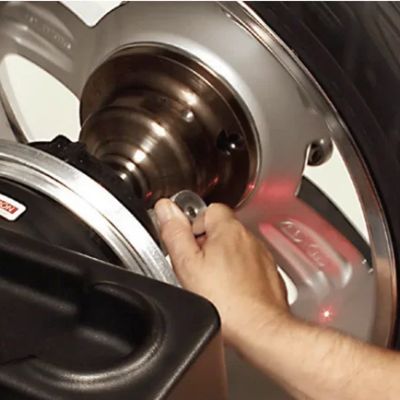

• Laser guided operation: Shows exactly where to place Tape-A-Weight wheel weights.
• Stop, Lock, Indexing: Locks the spindle firmly in place for accurate weight placement.

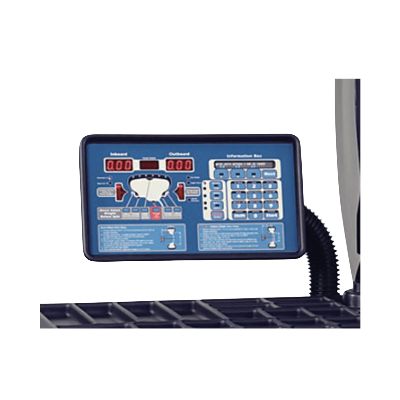

• Static and dynamic display: LED readouts show static and dynamic data at the same time and flag excess residual static imbalance for correction.
• 3D automatic data entry: Measures distance, diameter, and width automatically.
• Ultra-wide, fully-boxed frame: Built for stability.
• UL certified.

Specifications:

Frequently Asked Questions:

What comes with the Coats 6450 3D Heavy Duty Wheel Balancer Kit?
Every kit includes the Coats 575 Wheel Lift, a Stud Piloted Budd Adapter, and a Hub Centered Cone Kit.

Can the Coats 6450 balance both truck and passenger car wheels?
Yes. Its Dual Calibration Software (DCS™) runs two independent calibrations, one for heavy duty and one for passenger vehicles, so it works like two machines in one.

What is the maximum tire weight for the Coats 6450?
The 6450 handles tires up to 500 lbs. The included 575 Wheel Lift supports wheel assemblies up to 500 lbs.

What wheel sizes does the Coats 6450 balance?
It handles rim diameters from 8" to 30", rim widths up to 20", and tires up to 52" in diameter.

How many balancing modes does the Coats 6450 have?
The Coats 6450 has 11 balancing modes.

How much floor space does the Coats 6450 need?
The footprint is 72" wide x 62" deep.

Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories
