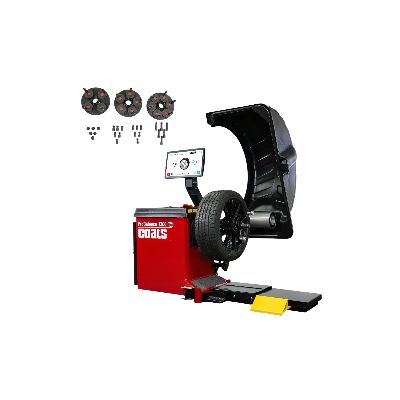

Coats ProBalance E900 Diagnostic Wheel Balancer Package (220V 1PH)

Coats ProBalance E900 Diagnostic Wheel Balancer Package

The Coats ProBalance™ E900 is a direct drive diagnostic wheel balancer for passenger vehicles and light trucks. It measures and corrects both unbalance and runout to address weight- and shape-related tire vibrations. Its diagnostic roller and ProMatch Technology detect shape-related vibration issues before the wheel is mounted on the vehicle. ProBalance Technology corrects residual unbalance during every balancing cycle. The E900 is designed and built in the U.S., and Coats backs the direct drive motor with a 10-year warranty.

Key Features:

• Direct drive: The motor and spindle are integrated into a single, factory pre-balanced assembly. There are no belts or pulleys, and it doesn't need frequent calibration.
• Diagnostic roller + ProMatch Technology: Detects wheel assembly shape-related vibration before mounting. ProMatch then guides technicians to mark and align high and low spots to reduce vibration that weights alone can't fix.
• ProBalance Technology: A balancing algorithm that detects and corrects both static and couple unbalance, including residual unbalance.
• Laser-guided operation: A 5 o'clock pinpoint laser and a 12 o'clock laser show exactly where to place weights. The lasers also capture wheel dimensions to reduce manual input.
• Touchscreen: Smartphone-style controls with step-by-step guides and real-time visuals.
• Stop Lock Index: Automatically servos and locks the spindle at the weight placement position.
• Speed Thread: Mounts and demounts the wheel with a foot pedal, so technicians don't spin the hub nut by hand.
• 3D automatic data entry: Measures distance, diameter, and width automatically.

Specifications:

Frequently Asked Questions:

What is the Coats ProBalance E900?
The E900 is a direct drive diagnostic wheel balancer for high-volume shops serving passenger vehicles and light trucks. It measures and corrects both unbalance and runout to address weight- and shape-related tire vibrations.

What is ProMatch Technology?
ProMatch uses the E900's diagnostic roller to detect wheel assembly shape issues before mounting. It then guides technicians to mark and align high and low spots on the wheel and tire to reduce vibration that weights alone can't fix.

What is ProBalance Technology?
ProBalance Technology is Coats' balancing algorithm. It detects and corrects both static and couple unbalance, including residual unbalance, during every balancing cycle.

How is the E900 different from the Coats 1600?
According to Coats, the E900 delivers all the core capabilities of the 1600 and adds diagnostics and modern features. These include the diagnostic roller with ProMatch Technology and laser capture of wheel dimensions.

What warranty comes with the Coats E900?
The E900 has a 3-year parts and 6-month labor warranty, plus a 10-year warranty on the direct drive motor.

What is the maximum wheel weight the E900 can handle?
The E900 handles wheel assemblies up to 160 lbs. It handles wheel diameters from 8" to 30" and tires up to 44" in diameter.

What power does the 0808KE900PROKIT require?
This package is the single-phase version and requires 220V, 1PH power.

Where is the Coats E900 made?
The E900 is designed and built in the U.S. and serviced by Coats' own factory-trained technicians.

Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories
