Coats 90C Center Clamp Tire Changer (220V, 2 HP Electric)

Item #: 08090CEH220
Coats 90C Center Clamp Tire Changer (220V, 2 HP Electric)
Coats 90C electric center clamp tire changer with Leverless Duckhead, Robo-Arm and RoboRoller. 220V 2 HP motor, 12–30" external rim diameter, 50" max tire diameter.

Coats 90C Center Clamp Tire Changer (220V, 2 HP Electric)

The Coats 90C is a center clamp tire changer for car and light truck wheels with a 220V, 2 HP electric motor. Its Leverless Duckhead mount/demount tool replaces traditional tire tools that can mar the wheel surface on difficult applications. A center locking clamp with a manual lock holds the wheel and helps prevent metal-to-metal contact with the wheel. The 90C handles external rim diameters from 12" to 30", tires up to 50" in diameter, and rims up to 15" wide.

Key Features:

  • Leverless Duckhead mount/demount tool: Acts as a helper device alongside the RoboRoller and replaces traditional tire tools that can mar the wheel surface.

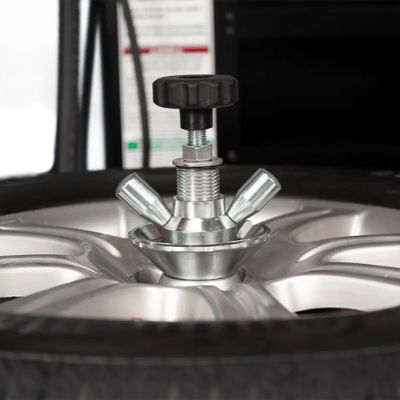

  • Center locking clamp design: Fast, sturdy center locking mechanism that helps prevent metal-to-metal contact with customer wheels.
  • Robo-Arm bead depressor and RoboRoller.
  • Auxiliary bead sealer: Directs airflow wherever it's needed on the assembly to seal beads more efficiently and reduce maintenance.
  • Hand operated bead loosener: Point-of-use controls give the technician a direct line of sight, reducing the risk of wheel damage.
  • 220V, 2 HP electric motor.

Specifications:

Specification Detail
Item # 08090CEH220
Manufacturer Part # 80090CEH220
Brand Coats
Motor 220V, 2 HP Electric
Wheels Handled Car and Light Truck
Wheel Clamp System Center Clamp with Manual Lock
External Rim Diameter 12" – 30"
Maximum Tire Diameter 50"
Maximum Rim Width 15"
Bead Loosening System Hand Control
Bead Sealer Auxiliary Bead Sealer
Mount/Demount System Leverless Duckhead
Bead Depressor Robo-Arm
Additional Helper RoboRoller
Footprint 74"W x 88"H x 65"D


Frequently Asked Questions:

What is the Leverless Duckhead on the Coats 90C?
The Leverless Duckhead is the 90C's mount/demount tool. It works as a helper device alongside the RoboRoller and replaces traditional tire tools that can mar the wheel surface on difficult applications.

What wheel sizes does the Coats 90C handle?
It handles external rim diameters from 12" to 30", tires up to 50" in diameter, and rims up to 15" wide.

What motor does the 08090CEH220 use?
This model uses a 220V, 2 HP electric motor.

What is the difference between the Coats 90C and 80C?
Both are center clamp tire changers with the same rim, tire, and footprint specs. The 90C uses a Leverless Duckhead mount/demount system and adds a Robo-Arm bead depressor. The 80C uses a swing away arm mount/demount system with a RoboRoller bead depressor.

How much floor space does the Coats 90C need?
The footprint is 74" wide x 88" high x 65" deep.

Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories

Product Name Coats 90C Center Clamp Tire Changer (220V, 2 HP Electric)
Brand Name Coats Equipment
Lookup # 08090CEH220
