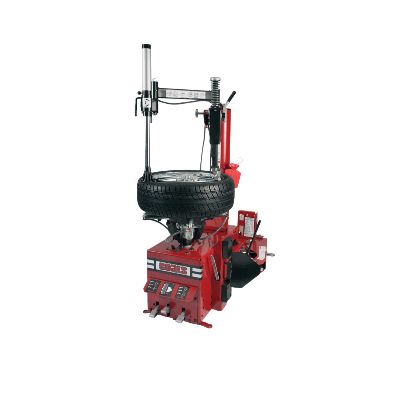

Coats RC 55 Air Rim Clamp Tire Changer with Robo-Arm

Coats RC 55 Air Rim Clamp Tire Changer with Robo-Arm

The Coats RC 55 is a compact, air powered rim clamp tire changer for aftermarket shops with limited space. It comes with a Robo-Arm helper system for run-flat and low-profile tires. It handles alloy and steel car and light truck wheels from 6" to 24" (external), tires up to 50" in diameter, and rims up to 10.5" wide. Coats designs and builds the RC 55 in La Vergne, Tennessee. It has a manual swing arm, a Duckhead mount/demount tool, and built-in bead sealing jets for tabletop inflation.

Key Features:

• Robo-Arm helper system: Presses directly on the tire bead to create a bead lock, pushing the bead into the drop center during mounting. It helps with the run-flat and low-profile tires common on today's OEM vehicles.
• Rim Clamp® design: Four air-cylinder-operated clamps hold the wheel securely by the rim.
• Air powered: 1.5 HP air motor that operates on 110–175 psi at 15 scfm.
• Manual swing arm: Technicians can move the tool head as needed for better access.
• Duckhead® mount/demount tool: Comes standard. It rests on the rim to guide the bead off during demounting and back on during mounting.
• Built-in bead sealing jets: Tabletop inflation with a 3.4-gallon bead seating system.
• Foot control bead loosener: Works on tires up to 10.5" wide.

Specifications:

Frequently Asked Questions:

What does the Robo-Arm do on the Coats RC 55?
The Robo-Arm presses directly on the tire bead to create a bead lock, pushing the bead into the drop center during mounting. It helps with run-flat and low-profile tires.

What is the difference between the Coats RC 55 and RC 45?
Both are compact swing arm rim clamp tire changers with the same rim, tire, and clamping specs. The RC 55 adds the Robo-Arm helper system. The RC 45 has no helper device.

What size tires does the Coats RC 55 handle?
The RC 55 handles 6"–24" external rim diameters, rims up to 10.5" wide, and tires up to 50" in diameter.

What air supply does the RC 55 Air need?
The air model uses a 1.5 HP air motor that operates on 110–175 psi at 15 scfm.

What accessories come with the RC 55?
The RC 55 comes with two Duckhead® mount/demount tool inserts (#8182961). The Duckhead mount/demount tool comes standard.

Where is the Coats RC 55 made?
RC tire changers are designed and built in La Vergne, Tennessee, where Coats is headquartered.

Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories
