Coats CHD 6330 Heavy Duty Tire Changer

The Coats CHD 6330 is a heavy duty tire changer built for tubeless truck and trailer tires and small industrial assemblies such as skid steers. It has a compact, single-piece frame and a four-jaw chuck that clamps virtually all rim styles. A portable wired control station lets technicians work from the best angle. It handles rims from 13" to 27", rim widths up to 30.5", and tires up to 63" in diameter.

Key Features:

• Compact single-piece frame: Solid, single-piece construction chosen for added capacity and dependability.

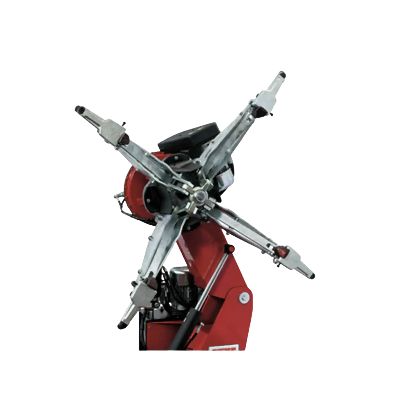

• Four-jaw chuck: Clamps virtually all rim styles quickly and easily, including demountable, Dayton style, reverse disc, standard disc, and off-road wheels.

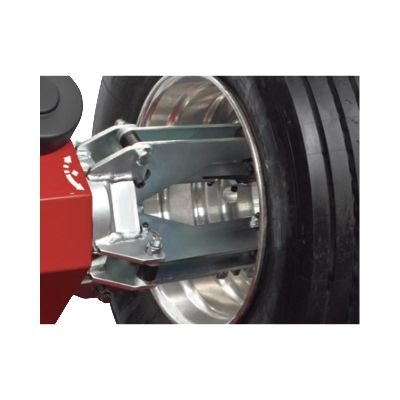

• Floating jaws: Match wheel contours for grip and safety.

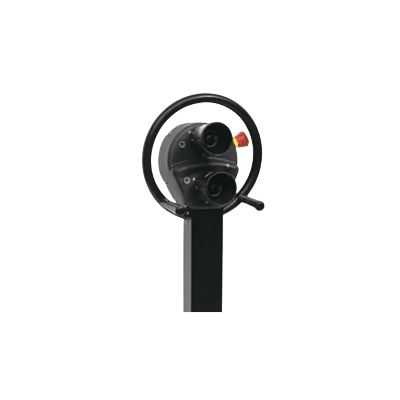

• Portable wired control station: Lets the technician work from the best angle at all times.
• Control stick: Controls pivoting and clamping.
• Manually positioned tool head/arm.

Specifications:

Frequently Asked Questions:

What types of tires can the Coats CHD 6330 service?
The CHD 6330 is designed for tubeless truck and trailer tires and small industrial assemblies such as skid steers.

What wheel styles does the CHD 6330's four-jaw chuck clamp?
The four-jaw chuck clamps virtually all rim styles, including demountable, Dayton style, reverse disc, standard disc, and off-road wheels.

What size tires does the Coats CHD 6330 handle?
It handles rims from 13" to 27", rim widths up to 30.5", and tires up to 63" in diameter.

What power does the Coats CHD 6330 require?
The CHD 6330 uses a 208–230VAC, 60Hz electric motor. Coats offers it in single-phase and three-phase versions.

How much floor space does the Coats CHD 6330 need?
The footprint is 69" wide x 68.5" deep x 50" high.

Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories
