Haltec GCSA Large Bore and Standard Bore Air Gauge Check Station

Haltec GCSA Large Bore and Standard Bore Air Gauge Check Station

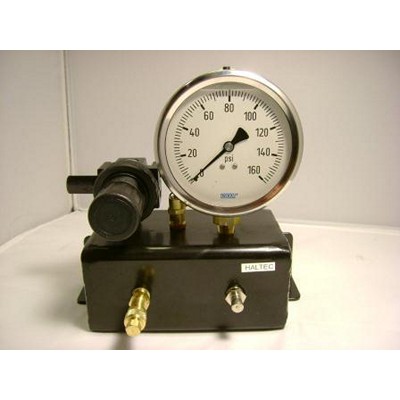

Haltec Large Bore and Standard Bore Air Gauge Check Station. Product Benefits include:

• Large 4" Liquid Filled Gauge.
• 2 lb Graduated Increments.
• Max Operating Pressure: 160 PSI.
• Max Supply Pressure: 165 PSI.
• Accuracy: ± 1% Full Scale.
• Dimensions: 8-3/8" W x 7" H x 5" D.
• Inline Particulate Filter prevents damage caused by dirty air.
• Heavy Duty Air Pressure Regulator to provide lasting, reliable service.
• Pressure Safety Relief Valve prevents dangerous over pressurization.
• Pressure gauge provides clear pressure readings for greater test accuracy.

Works with the following associated part numbers: Gauges: GA100, GA120, GA125, GA135, GA140, GA155, GA160, GA850-330, GA850-350, GA250, GA255S, GA255S-RCL, GA289; Replacement Tank Valves: TV400S-Standard Bore, H47-Large Bore.
