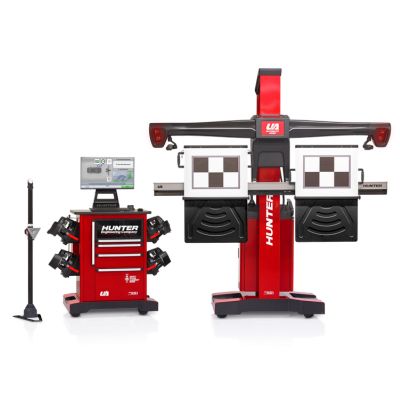

Hunter UAD145 Ultimate ADAS and Alignment Machine

Hunter Ultimate ADAS® Wheel Alignment and ADAS Calibration System

Item #255UAD145

The Hunter Ultimate ADAS® is a combined wheel alignment and ADAS calibration system that lets your shop perform alignments and static ADAS calibrations in the same bay, with the same equipment. Laser-guided target placement replaces strings, plumb bobs, and tape measures, cutting setup time by up to 70% on some procedures compared to traditional OEM methods.

Why Shops Choose Ultimate ADAS

• Same bay, same equipment. Perform alignments and static ADAS calibrations without reserving floor space for a single-purpose calibration fixture.
• Spot-on target placement. Lasers mark target locations all around the vehicle, and on-screen guidance walks your tech through each step.
• Error-proof procedures. Cameras and lasers confirm every placement. If an error is detected, the system returns the tech to the previous step.
• Automated height, roll, pitch, and yaw. Motors and computerized adjusters handle tedious adjustments and improve accuracy.
• Automatic unlevel floor compensation. The system corrects for floor variation and confirms all ADAS tool placement with lasers.
• Mobile design. Battery backup lets you move between bays without powering down.
• Integrated target storage. Keeps your target investment protected and organized.

Static ADAS Calibrations Supported

• Forward-facing cameras
• Forward-facing radar
• Surround view and advanced surround view
• Side view cameras and lane watch
• Blind spot and rear corner radar
• Lane departure warning systems

Real Time Savings

Confirmed placement times reported by Hunter, compared with the published OEM procedure:

• Forward-facing camera: 4 minutes or less, compared with 25 minutes
• Forward-facing radar: 3 minutes 30 seconds or less, compared with 25 minutes
• Surround view: 3 minutes 30 seconds or less, compared with 20 minutes
• Advanced surround view: 5 minutes or less, compared with 50 minutes
• Side view camera: 4 minutes or less, compared with 20 minutes
• Blind spot / rear corner radar: 3 minutes 45 seconds or less, compared with 13 minutes

Exact times and savings depend on vehicle.

OEM Approved

Ultimate ADAS is approved by Honda, Acura, Nissan, INFINITI, Subaru, Kia, Toyota, Lexus, and Rivian, with more approvals to come.

Standard-Setting Wheel Alignment

Ultimate ADAS shares the alignment benefits of Hunter's leading HawkEye Elite® system:

• Award-winning WinAlign® software
• Four high-resolution cameras, one dedicated to each wheel
• QuickGrip® wheel adaptors that clamp on with no damage to the wheel
• QuickComp® rolling compensation
• CodeLink® steering angle sensor reset

Complete Calibration Documentation

Each ADAS calibration produces a printed and digital report showing the calibration procedure, confirmed target placement with X, Y, and Z coordinates, before-and-after alignment measurements, OEM specifications, and workspace validation. Easy-to-understand graphics help convey results to your customer, and the fully recorded process gives insurance companies what they need. Digital reports are archived automatically.

HunterNet® 2 Portal

• Recall past alignment results and printouts
• Look up ADAS vehicle coverage
• Order ADAS targets and accessories
• Monitor equipment ROI and shop performance

Installation, Training, and Support Included

Installation and training are included, delivered by Hunter's network of 750+ local representatives. Ultimate ADAS is backed by Hunter's 3-year warranty on parts (6 months labor) and is designed and built in the USA.

Frequently Asked Questions

What is the Hunter Ultimate ADAS?
Ultimate ADAS is an alignment and ADAS calibration system that performs wheel alignments and static ADAS calibrations in the same bay, using the same equipment, with laser-guided target placement and error-proof monitoring.

How much time does Ultimate ADAS save on calibrations?
Hunter reports setup time reductions of up to 70% compared to traditional OEM procedures. Forward-facing camera placement, for example, is confirmed in under 4 minutes compared with 25 minutes using manual methods.

Which automakers approve Ultimate ADAS?
Honda, Acura, Nissan, INFINITI, Subaru, Kia, Toyota, Lexus, and Rivian.

Can Ultimate ADAS be moved between bays?
Yes. The system is mobile and includes battery backup, so it can move between bays without powering down.

Does Ultimate ADAS work on uneven shop floors?
Yes. It automatically compensates for unlevel floors and uses lasers to confirm all ADAS tool placement.

Does Ultimate ADAS provide documentation for insurance?
Yes. It generates printed and digital reports showing calibration procedures, target placements, before-and-after alignment measurements, OEM specifications, and workspace validation.

Equipment images are for reference only. Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories. Additional accessories are needed for this equipment.
