Hunter HawkEye Elite® Xpandable (HAWKELITEX) Wheel Alignment Machine with ADASLink®

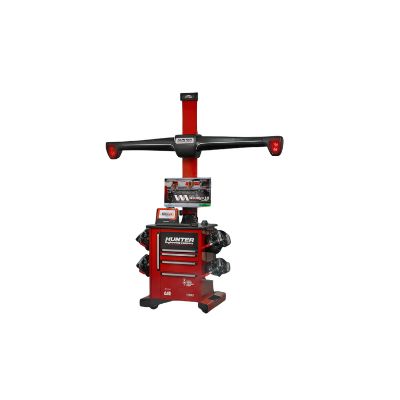

Hunter HawkEye Elite® Xpandable Wheel Alignment Machine – HAWKELITEX

The Hunter HawkEye Elite® Xpandable (HAWKELITEX) is a fully featured premium wheel aligner designed to expand into Hunter's Ultimate ADAS® system for static ADAS calibrations whenever your shop is ready. It captures alignment measurements in 70 seconds with pinpoint accuracy. The ADASLink® diagnostic scan tool comes standard, with secure gateway access for dynamic calibrations. Shops can start earning alignment ROI from day one and grow into the ADAS market at their own pace. It is designed and built in the USA by Hunter Engineering Company.

Alignment now, static ADAS later

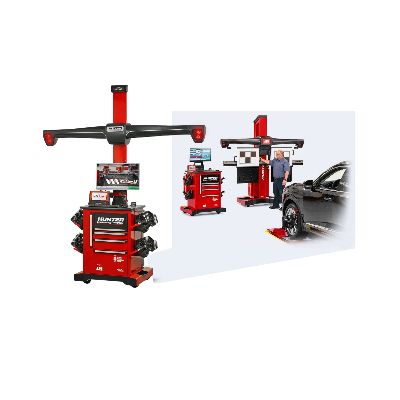

The HAWKELITEX is built to upgrade directly to Hunter's Ultimate ADAS® all-in-one alignment and ADAS calibration machine. The upgrade path:

1. HawkEye Elite® X: keep the camera sensors, console, and ADASLink® scan tool
2. Ultimate ADAS® Upgrade Package: add the calibration fixture, which includes the target rail and boards, laser gimbals, remote floor stand, and target board storage system
3. Ultimate ADAS®: a complete alignment and laser-guided static ADAS calibration machine

Xpandable mobile cabinet console

• Mobile cabinet mount that moves bay to bay
• Xpandable console with the largest storage capacity of Hunter's HawkEye Elite® consoles
• 32-inch widescreen LED monitor
• Vertical camera adjustment
• Multiple target storage configurations
• Customizable lighted sign
• Available in red or black

70-second alignment measurements

• Four high-resolution cameras measure each wheel with pinpoint accuracy
• One quick trip around the vehicle for camber, toe, and caster readings in an easy-to-read format
• QuickComp and forward rolling compensation
• Non-contact measurement with no metal-to-metal contact

QuickGrip® wheel adaptors and TD targets

• Easy clamping: spring-loaded arms grip the tire with a thumb switch, and off-center clamping has no effect on accuracy
• No metal-to-metal contact: the arms grip the tire instead of the rim, with a protective rubber ring between the target and the rim
• Lightweight and durable: 6 lbs, 50% lighter than previous models, with a drop-resistant polymer structure and no electronics or calibration to maintain
• Slim profile: about 9 inches, easy to work around in narrow bays
• Quick-change arms: fit assemblies up to 37 inches, with one arm covering about 90% of applications
• 5-second installation, per Hunter's spec sheet

ADASLink® diagnostic scan tool (standard)

• Steering system resets: perform and document required resets after alignment
• Dynamic ADAS calibrations: sensor resets and test drives with no extra space or fixtures
• Pre- and post-scans: a full look at the vehicle's systems and codes
• Secure gateway access: OEM-approved access to Stellantis, Hyundai, Kia, and more
• Diagnostics: review trouble codes, run special tests, and electronically code or pair new parts such as EPS components

WinAlign® software

HawkEye Elite® and WinAlign® have more than 70,000 systems in use worldwide and a database supporting more than 285 million vehicles. WinAlign® features include:

• ExpressAlign®, which gives the optimal step sequence for each job
• WinToe®, for a straight steering wheel without repeated adjustments or a steering wheel holder
• Tools & Kits Database, showing the tools and aftermarket kits needed for each alignment
• Virtual View®, with real-time 3D graphics of camber, caster, and toe
• Control Arm Movement Monitor®, which cuts adjustment times in half on front-shim, dual-cam, and dual-slot vehicles
• Live Ride Height Adjustment (patented; requires ride height targets)
• Automatic Bushing Calculator® (patented)
• Shim-Select II® (patented)
• Suspension Body Dimension Audit (patented)
• Symmetry angle measurements for body shop work
• Photo adjustment illustrations from the actual vehicle model
• Wheel-off adjustment (optional; accessories required)
• Before-and-after printouts for customers

Measurements and adjustments

The HAWKELITEX measures:

• SAI and included angle
• Setback and rear setback
• Maximum steering angle to lock (requires optional wide-angle targets, kit 20-2511-1)
• Wheelbase, track width, and tread width differences
• Lateral offset and axle offset
• SBDA
• Body angle, body wheel offset and setback, and body roll

Adjustment features include Way Up Way Out and WinToe®, with wheel-off adjustment optional.

Fully Integrated Alignment (FIA) compatible

When paired with a Hunter FIA lift rack, the WinAlign® console communicates directly with the lift to set tire pressures and operate turnplates and slipplates. Hunter says this completes alignments up to 60% faster.

HunterNet® 2 connectivity

• Recall alignment results and printouts
• Look up dynamic and static ADAS coverage online
• Monitor ROI and track revenue in real time
• Set goals, view performance, and receive daily push reports
• Order genuine Hunter consumables
• Access Hunter's 1708-T Alignment Guide and ADAS calibration information online

Warranty and manufacturing

• Hunter's 3-year warranty: three years on parts, six months on labor
• Designed and built in the USA

Specifications:

Frequently Asked Questions:

What is the Hunter HawkEye Elite® Xpandable (HAWKELITEX)?
It is a premium wheel alignment machine in a mobile cabinet-mount configuration. It is designed to upgrade to Hunter's Ultimate ADAS® system for static ADAS calibrations.

What does "Xpandable" mean?
The aligner can be upgraded to Ultimate ADAS® by adding the Ultimate ADAS® Upgrade Package. You keep the camera sensors, console, and ADASLink® scan tool.

What comes in the Ultimate ADAS® Upgrade Package?
A calibration fixture with a target rail and boards, laser gimbals, a remote floor stand, and a target board storage system.

How fast is the HawkEye Elite® X?
It captures alignment measurements in 70 seconds.

Does the HAWKELITEX include an ADAS scan tool?
Yes. The ADASLink® diagnostic scan tool comes standard, with secure gateway access for dynamic calibrations.

Can the HAWKELITEX do static ADAS calibrations?
Not on its own. Static calibrations require upgrading to Ultimate ADAS® with the Ultimate ADAS® Upgrade Package.

What is the difference between the Xpandable console and the Standard console?
The Xpandable console has the largest storage capacity and can be upgraded to Ultimate ADAS®. It comes only in the mobile cabinet-mount configuration. The Standard console isn't upgradeable to Ultimate ADAS®.

Do QuickGrip® adaptors touch the wheel rim?
No. The arms grip the tire, and a protective rubber ring sits between the target and the rim.

How much bay space does the HAWKELITEX need?
The spec sheet lists a distance to wall of 66 to 107 inches, with 99 inches suggested. A 66-inch short bay distance is also listed, subject to site information.

Does it work with Hunter lift racks?
Yes. It is compatible with Fully Integrated Alignment (FIA), which lets the aligner control compatible Hunter lift functions.

What colors is it available in?
Red or black.

Equipment images are for reference only. Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories. Additional accessories are needed for this equipment.
