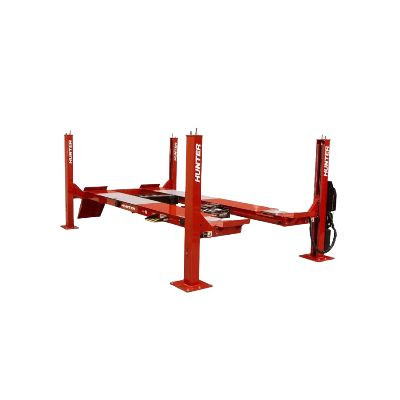

Hunter L451T-IS Open-Front Four-Post Alignment Lift with Inflation Station, 18,000 lb

Hunter L451T-IS Open-Front Four-Post Alignment Lift with Inflation Station

The Hunter L451T-IS is an 18,000 lb capacity open-front four-post alignment lift equipped with Hunter's Inflation Station, PowerSlide® turnplates and slipplates, and Fully Integrated Alignment (FIA). Its open-front design, with no front beam, gives technicians easy access to service points and jacks. Extra-wide 26-inch runways, a 177-inch two-wheel alignment wheelbase, and two standard 9,000 lb swing air jacks make it a high-capacity alignment rack for passenger cars and trucks. It is designed and built in the USA and installed locally by Hunter's service team.

Inflation Station

• Inflates all four tires at the same time, automatically
• Fills or bleeds each tire to the set pressure
• Records starting and final tire pressures

PowerSlide® turnplates and slipplates

• Turnplates and slipplates lock and unlock automatically at the right times
• Locks automatically as the lift descends
• No more wrestling with turnplate and slipplate pins

Fully Integrated Alignment (FIA)

FIA lets Hunter WinAlign® alignment machines control the lift's functions. Electronic communication between the lift and the aligner reduces technician effort and the chance of errors. The FIA console controls both the PowerSlide® and Inflation Station features.

Built for high-capacity alignment work

• 18,000 lb lifting capacity, which Hunter calls best in class
• Open-front workspace with no front beam, for easy access to adjustment points and jacks
• 26-inch extra-wide runways that service vehicles up to 92 inches wide
• Two 9,000 lb swing air jacks standard, for strong height, reach, and durability

Standard equipment and features

• Stainless steel turnplates for long-lasting, accurate alignments
• Built-in slipplates for four-wheel alignments from 88 to 158 inches
• Standard air line kit supplying air to the jacks and auxiliary ports
• Two movable worksteps that are sturdy, lightweight, and lock into several positions
• Integrated control console with push-button functions and a 3-hp motor
• Louvered approach ramps for high traction, which Hunter rates better than diamond plate or abrasive finishes
• Tough umbilical covering that protects air and hydraulic lines

Safety and durability

• High-strength galvanized cables for long, reliable life
• 16-position louvered level locks keep the runways level and secure
• ALI certified: the L451 has been certified by the Automotive Lift Institute to meet ANSI/ALI ALCTV safety and UL 201 electrical standards

Options

• AlignLights turn on when the rack is raised and off when it's lowered
• Harsh Duty package for regions with heavy road salt and brine. It adds stainless steel slipplate tops, epoxy-sealed joints, zinc-rich primed, powder-coated and caulked runways and ramps, and complete stainless steel turnplates.

Warranty and manufacturing

• Hunter's 3-year warranty: three years on parts, six months on labor
• Designed and built in the USA and installed locally by Hunter's service team

Specifications:

Frequently Asked Questions:

What is the Hunter L451T-IS?
It is an 18,000 lb capacity open-front four-post alignment lift from Hunter's standard-length L451 line. It comes with Inflation Station, PowerSlide® turnplates and slipplates, and Fully Integrated Alignment.

What does the Inflation Station do?
It inflates all four tires at once, filling or bleeding each tire to the set pressure. It also records starting and final pressures.

What does PowerSlide® do?
It locks and unlocks the turnplates and slipplates automatically at the right times, so technicians don't have to pull and replace pins.

What is Fully Integrated Alignment (FIA)?
FIA lets a Hunter WinAlign® alignment machine control the lift's functions. That reduces technician effort and the chance of errors.

What is the lifting capacity of the L451T-IS?
18,000 lbs. It also comes standard with two 9,000 lb swing air jacks.

What wheelbase can it handle?
Up to 193 inches for general service and 177 inches for two-wheel alignments. The built-in slipplates support four-wheel alignments from 88 to 158 inches.

What is the difference between the L451 and the L451L?
The L451 is the standard-length model, with a 177-inch two-wheel alignment wheelbase. The L451L has longer runways and a 211-inch two-wheel alignment wheelbase.

Is the L451 ALI certified?
Yes. It is certified by the Automotive Lift Institute to meet ANSI/ALI ALCTV safety and UL 201 electrical standards.

Where is the L451T-IS made?
It is designed and built in the USA and installed locally by Hunter's service team.

Equipment images are for reference only. Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories. Additional accessories are needed for this equipment.
