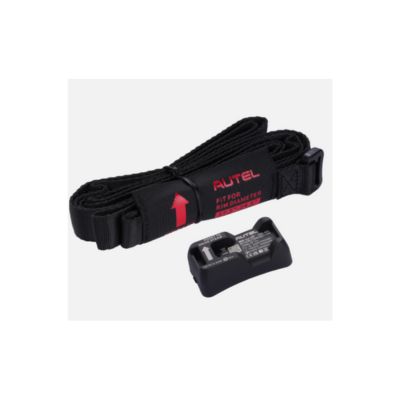

Autel CVS-A01 HD TMPS Fabric-Banded Programmable Sensor for Rims 17"-24.5" (Band Included)

Autel CVS-A01 HD TMPS Fabric-Banded Programmable Sensor for Rims 17"-24.5" (Band Included)

The Autel MX-Sensor CVS-A01, part number 300210, is a programmable universal TPMS sensor designed for commercial vehicles with a fabric band to attach the sensor to rim that is compatible with rims sized 17.5 to 24.5-inches. Program the CVS-A01 with the Autel MaxiTPMS ITS600 CV tool to replace OE and programmed aftermarket TPMS sensors on trucks, trailers, buses all manner of direct sensor, TPMS commercial vehicles. The CVS-01 is compatible with 433MHZ frequency systems. All Autel TPMS sensors are designed to meet or exceed industry standards and offer long battery life for proven customer satisfaction. The CVS-A01 is covered by a two-year limited warranty.

Weight (sensor body only): 26.3 g
Dimension(W x H x D): 54.0 x 29.4 x 18.1 mm
Max. pressure range (relative): 1400 kPa
Operating relative pressure: 0-1.4 MPa
Operating temperature: -40 176;C to 125 176;C
Operating frequency: 433 MHz
Battery capacity: 550mAh
Battery life: =5 years

More about Autel HD TPMS Solutions
Band mountable: Mount with a metal band (14"-24.5" rim) or fabric band (14"-17.5" or 17.5"-24.5")
Programmable to replace sensors of 95% of system-equipped commercial vehicles
Use with the Autel ITS600 CV Tool for activation, programming, and relearning
