Coats 4T212SSR1 12,000 lb 2-Post Lift (Symmetric)

Coats 4T212SSR1 12,000 lb. 2-Post Lift – Symmetric Model

The Coats 4T212SSR1 is a 12,000 lb. capacity two-post vehicle lift in the symmetrical configuration. It is part of Coats’ 12K two-post lift line, which is offered in both 2N1 and symmetrical models.

Key Features:

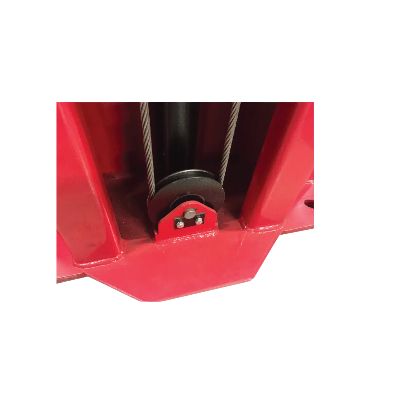

Non-fatigue cables and pulleys. The lift uses 3/8" non-fatigue cables with 3.5" pulleys. Coats states these pulleys last twice as long as plastic pulleys, so the lift lasts longer with less maintenance.

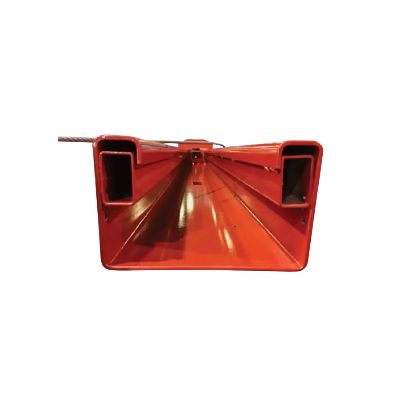

Reinforced columns. A 2.5" x 1.5" inner tube support reduces column flex under load.

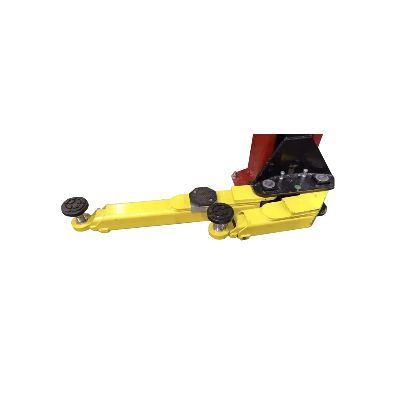

Reinforced arm components. The carriage arm pin holes are reinforced, and the arm restraints are plated gear-style.

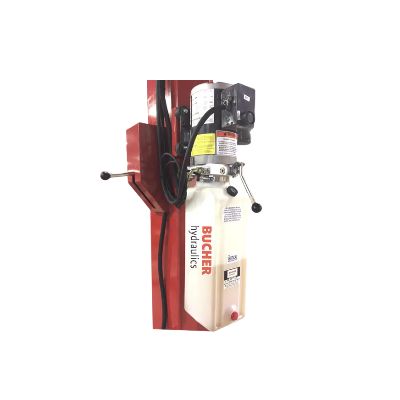

US-made Bucher 2HP power unit. The power unit is energy-efficient and, according to Coats, typically lasts the life of the lift. It has a single-point lock release, and its rubber motor mounts reduce motor noise.

Specifications:

Frequently Asked Questions:

What is the lifting capacity of the Coats 4T212SSR1?
The Coats 4T212SSR1 is rated for 12,000 lb.

Is the Coats 4T212SSR1 a symmetric or asymmetric lift?
The 4T212SSR1 is the symmetrical model of Coats’ 12K two-post lift. The 2N1 version of the same lift is sold under part numbers 4T212NSR1 and 4T212NSB1.

What power does the Coats 4T212SSR1 require?
It needs a 230V, 60 Hz, single-phase, 20 amp electrical supply.

How tall is the Coats 4T212SSR1, and how high does it lift?
The symmetric model has an overall footprint height of 154 7/8" and a raised height of 77".

How long does the Coats 4T212SSR1 take to reach full height?
Lift time is 75 seconds.

Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories.
