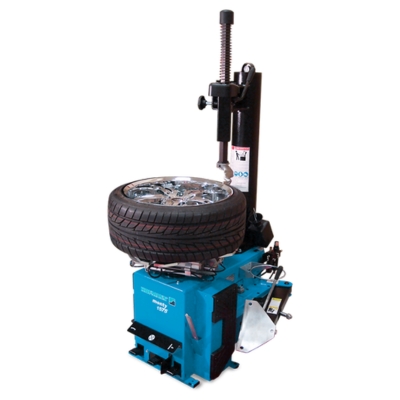

Hofmann Monty 1575 Rim Clamping Swing-Arm Tire Changer

Hofmann Monty 1575 Rim Clamping Swing-Arm Tire Changer

Retain profitable tire services in-house, and facilitate more efficient operations without compromising safety, by incorporating the monty 1575 swing-arm tire changer. With the capacity to handle tires measuring up to 12 inches in width and 40 inches in diameter, this machine can accommodate a wide range of tire types. An ergonomic pedal-operated on-floor bead breaker seamlessly manages tires up to 13 inches in size, effectively minimizing technician fatigue. Contemporary vehicles often present challenges due to diverse wheel configurations, but the monty 1575 is engineered to effortlessly handle such complexities. Twin cylinders drive the self-centering, nylon-covered clamping jaws, ensuring swift and secure gripping of heavy-duty wheels on the turntable, while minimizing potential damage. The monty 1575 offers substantial features within a compact footprint, solidifying its position as the essential workhorse for your shop.


Features:
ADJUSTABLE CLAMPING JAWS
To safeguard the wheel's integrity, these nylon-covered jaws are self-centering and grip the wheel firmly for elevated stability and safety.

COLUMN-INTEGRATED AIR TANK
Unobtrusive, vertical design, column-integrated air tank helps conserve valuable shop space with a large volume for increased blasting capabilities.

ON-FLOOR BEAD BREAKER (Pedal-Operated)
A conventional side-shovel bead breaker, featuring an ergonomically positioned pedal control situated a small distance from the shovel, is the quickest solution for efficiently handling a range of tires.

RIM CLAMPING BEAD SEATER
A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

SWING-ARM
Optimization of space is skillfully ensured with a mounting arm that pivots to the side, allowing the machine to be efficiently installed directly adjacent to a wall.

Specifications:
Max.Wheel Width: 13"
Max. Wheel Diameter: 40"
Power Supply: 115V 1ph 60Hz 12A
Dimensions: 72"x47"x44"
Air Pressure Required: 116-174 PSI
Max. Rim Diameter: 24"
Max. Rim Width: 12"
