Hunter DAS 3000 ADAS Calibration System

Hunter DAS 3000 ADAS Calibration Tools – 255DAS3000

The Hunter DAS 3000 is a static (in-bay) ADAS calibration fixture powered by Bosch. It works with the Hunter ADASLink diagnostic scan tool, which provides on-screen guidance for setting up and positioning the fixture. Integrated cameras reference wheel-mounted targets to position the fixture in front of the vehicle, which removes the need for plumb bobs, string, and tape measures.

Advanced driver-assistance systems (ADAS) such as forward-facing cameras, radar, blind-spot radar, and surround-view cameras need to be recalibrated after services like wheel alignment, suspension repair, and windshield replacement. The DAS 3000 is designed for the static calibrations these systems require.

Key Features

• Static ADAS calibration fixture, powered by Bosch
• Integrated cameras reference wheel targets for fixture placement
• On-screen setup and positioning guidance through Hunter ADASLink
• Integrated onboard target storage
• Mobile unit that can be moved to where it's needed in the shop
• First year of static calibration software included

Supported Calibration Types:

• Forward-facing camera
• Forward-facing radar with flat plate
• Forward-facing radar with corner cube
• Blind spot radar with corner cube
• Surround view / 360 cameras with floor mats

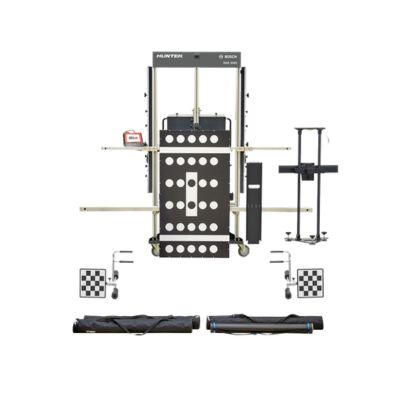

Primary Components:

• Primary fixture
• SCT 815 Prismatic Radar Reflector (for use with Honda, Hyundai, Kia, Mazda, and Toyota vehicles)
• Distance marker
• Wheel clamp markers
• Floor mats

Target Boards:

• Daimler/Infiniti #2 Target
• Honda #1 Target (set of 2)
• Honda #3 Target
• Hyundai/Kia #3 Target
• Mazda #1 Target
• Mitsubishi #1 Target (set of 2)
• Nissan #2 Target (set of 2)
• Subaru 2.1 & 3.1 Target Board
• Toyota #1 Target
• Toyota/Lexus #3 Target
• Universal XL Target Board
• Universal/Infiniti #1 Target (set of 2)
• VW/Audi Combo Camera/Radar Target Board

Specifications:

• Brand: Hunter Engineering
• Powered by: Bosch
• Product: DAS 3000 ADAS calibration fixture
• Rubber Inc part number: 255DAS3000
• Calibration type: Static (fixture)
• Companion product: Hunter ADASLink Scan Tool (255ADASLINK)

Frequently Asked Questions:

What is the Hunter DAS 3000?
-It's a Bosch-powered static ADAS calibration fixture from Hunter Engineering. It uses integrated cameras and wheel targets to position the fixture and holds the targets needed for in-bay ADAS calibrations.

Does the DAS 3000 need a scan tool?
-Yes. It works with the Hunter ADASLink scan tool, which provides vehicle communication, fixture positioning guidance, pre- and post-scans, and full diagnostics.

What's the difference between the DAS 3000 and ADASLink?
-ADASLink is the scan tool and handles dynamic (driving) calibrations on its own. The DAS 3000 is the fixture used with ADASLink for static, in-bay calibrations.

What ADAS systems can it calibrate?
-Forward-facing cameras, forward-facing radar (flat plate and corner cube), blind spot radar (corner cube), and surround view / 360 cameras.

Does it need plumb bobs or tape measures?
-No. Integrated cameras reference wheel targets to position the fixture.

Is calibration software included?
-The first year of static calibration software is included.



Equipment images are for reference only. Model shown may differ from current production and may include optional features. Contact your local rep or call us at 1-800-621-1563 to verify specifications and included accessories. Additional accessories are needed for this equipment.
