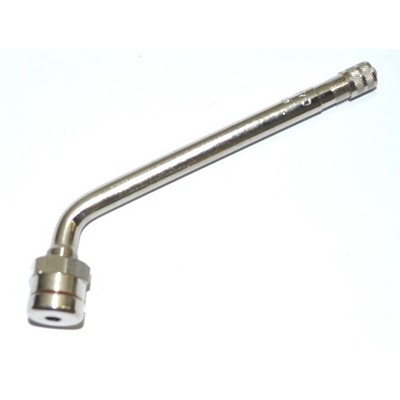

Haltec TV547D Alcoa Truck Tubeless Tire Valve

Haltec 547D Alcoa Truck Tubeless Tire Valves designed for use with 9.7mm (.382") rim hole. The Rubber o-ring forms a seal when the valve is clamped to rim by tightening the hex nut. Designed specifically for use in aluminum wheels. Length from grommet to bend of valve is 0.98". Length from bend to the top of valve is 3.78". Bend is 60°. Ascot Part #463-05474.
