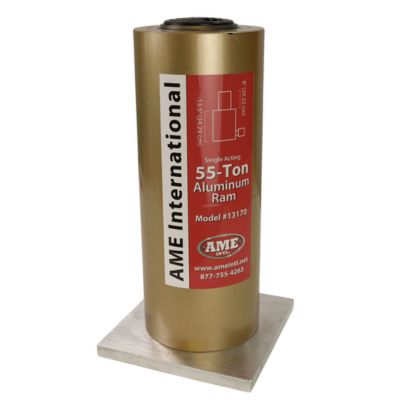

AME 13170 Aluminum 55-Ton Hydraulic Jack w/8" Stroke

The AME 13170 Aluminum 55-Ton Hydraulic Jack is built for technicians who need serious lifting capacity without the extra weight. At just 31 lbs, this 55-ton jack delivers an 8" stroke, the longest lift range available in its class, so you spend less time swapping extensions and more time getting the job done.

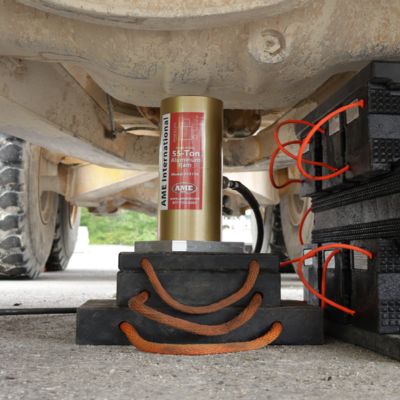

Every detail was engineered from real-world tire technician feedback. The domed saddle and increased internal bearing separation protect against side-loading damage on uneven or shifting loads, while the durable aluminum cylinder holds up to daily heavy-duty use in the field. A shut-off valve lets you disconnect the pump while the jack stays extended, keeping your workflow efficient on commercial and OTR jobs.

This exclusive design is available only through AME International and is proudly made in the USA.

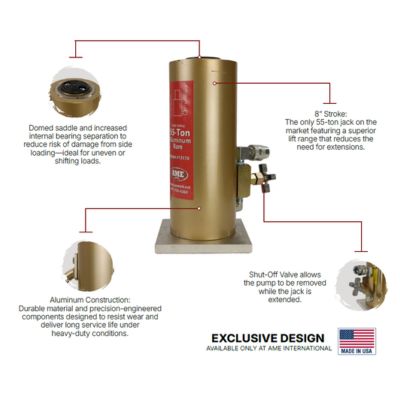

Key Features

• 8" stroke – the only 55-ton jack on the market with this lift range, reducing the need for extensions
• 55-ton capacity in a lightweight 31 lb aluminum body

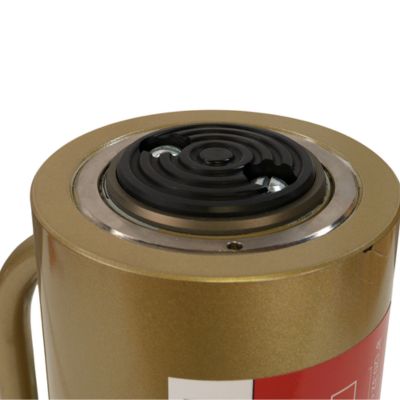

• Domed saddle design with increased bearing separation for side-load protection
• 13.5" to 21.5" lift range for flexibility across vehicle types

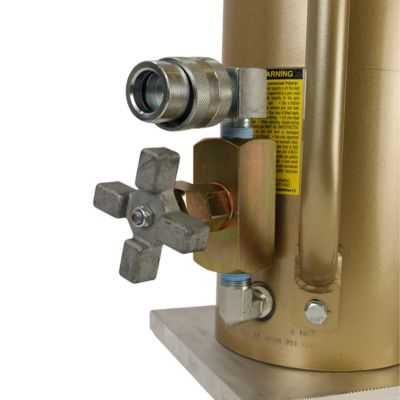

• Shut-off valve allows pump removal while the jack stays extended
• Durable aluminum construction built for long service life under heavy-duty conditions
• Made in the USA

Specifications

FAQ

What makes the AME 13170 different from other 55-ton hydraulic jacks?

The AME 13170 is the only 55-ton hydraulic jack on the market with an 8" stroke. This longer lift range means technicians can handle more lifting tasks without needing extensions, saving time and reducing the number of tools required on the job.

How much does the AME 13170 weigh?

The AME 13170 weighs just 31 lbs, making it easy to maneuver and carry in field service environments without sacrificing its 55-ton lifting capacity.

What is the lift range of the AME 13170?

The jack has a minimum height of 13.5" and a maximum height of 21.5", giving technicians an 8" stroke that covers a wide range of vehicle heights and applications.

Why does the AME 13170 have a domed saddle?

The domed saddle, combined with increased internal bearing separation, reduces the risk of damage from side loading. This design is ideal for uneven or shifting loads commonly encountered in commercial and OTR tire service.

Is the AME 13170 made in the USA?

Yes. The AME 13170 is proudly made in the USA and is an exclusive design available only through AME International.
